AIR WATER REALIZE INC.

To minimize the pain

Manufactured to Very Competitive International Standards

Our company's injection needles have received high praise, primarily from customers in Europe and the US.
Injection needles manufactured with sharp tips and our unique coating process have received high praise from international customers for their low penetration resistance and minimal pain. Sold in 80 countries. Furthermore, dental and ophthalmic washing needles, and resin filling needles, have a safe and easy-to-use shape developed in collaboration with dentists over many years. Misawa Medical Industry injection needles are considered very competitive overseas on price and delivery time. Our integrated injection needle manufacturing system is constantly reviewed to ensure that products are of an appropriate quality for the international market.

Hospital Field

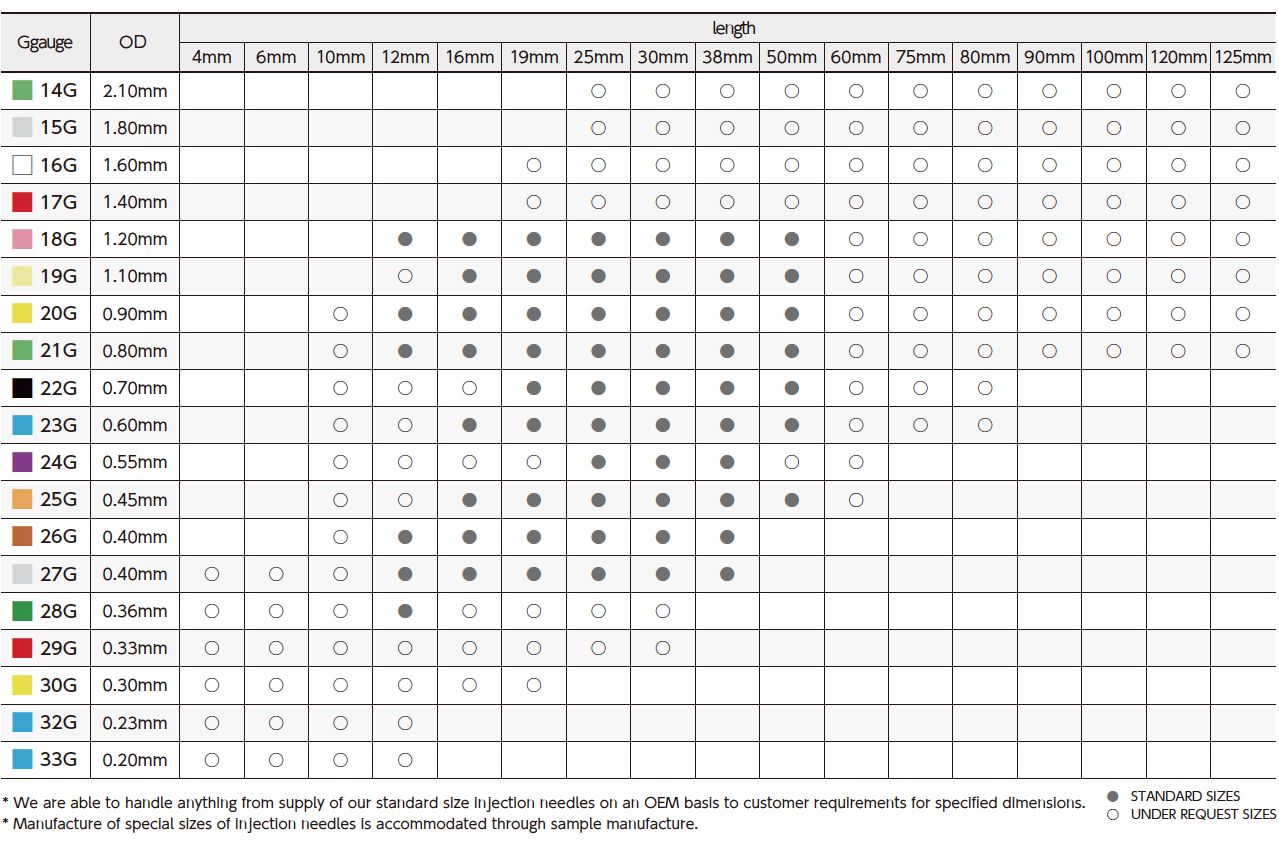

Hypodermic Injection Needles

Hypodermic Injection Needles


Hypodermic injection needles manufactured with sharp tips and our unique coating process have received high praise from international customers for their low penetration resistance and minimal pain. Sold in many countries. We are able to handle anything from supply of our standard size injection needles on an OEM basis to customer requirements for specified dimensions.
●We are able to accommodate sizes from 33G (outside diameter 0.20 mm, wall thickness 0.06 mm) to 14G (outside diameter 2.10 mm, wall thickness 0.2 mm).
●Manufacture of special sizes of injection needles is accommodated through sample manufacture.
●Cannulas and bulk components can also be delivered in unpackaged format.



specification sheet PDF ►►

Dental Field

Anesthetic Applications

Anesthetic Applications


Dental injection needles manufactured with our superior ultra-fine diameter processing technology are not only thin and sharp, but are of appropriate length and hardness to ensure precision in the work of the dentist. Misawa Medical Industry dental injection needles have received high praise, primarily from customers in Europe and the US.
●Fine diameter needles (33G: 0.26 mm, 31G: 0.28 mm, 30G: 0.31 mm) in particular are short and are therefore able to be inserted precisely into tight locations.
●We are able to handle a range of types of injection needles, including cartridge types with back-needle, and luer taper types.
●Manufacture of special sizes of injection needles is accommodated through sample manufacture.
●Cannulas and bulk components can also be delivered in unpackaged formats.



specification sheet PDF ►►

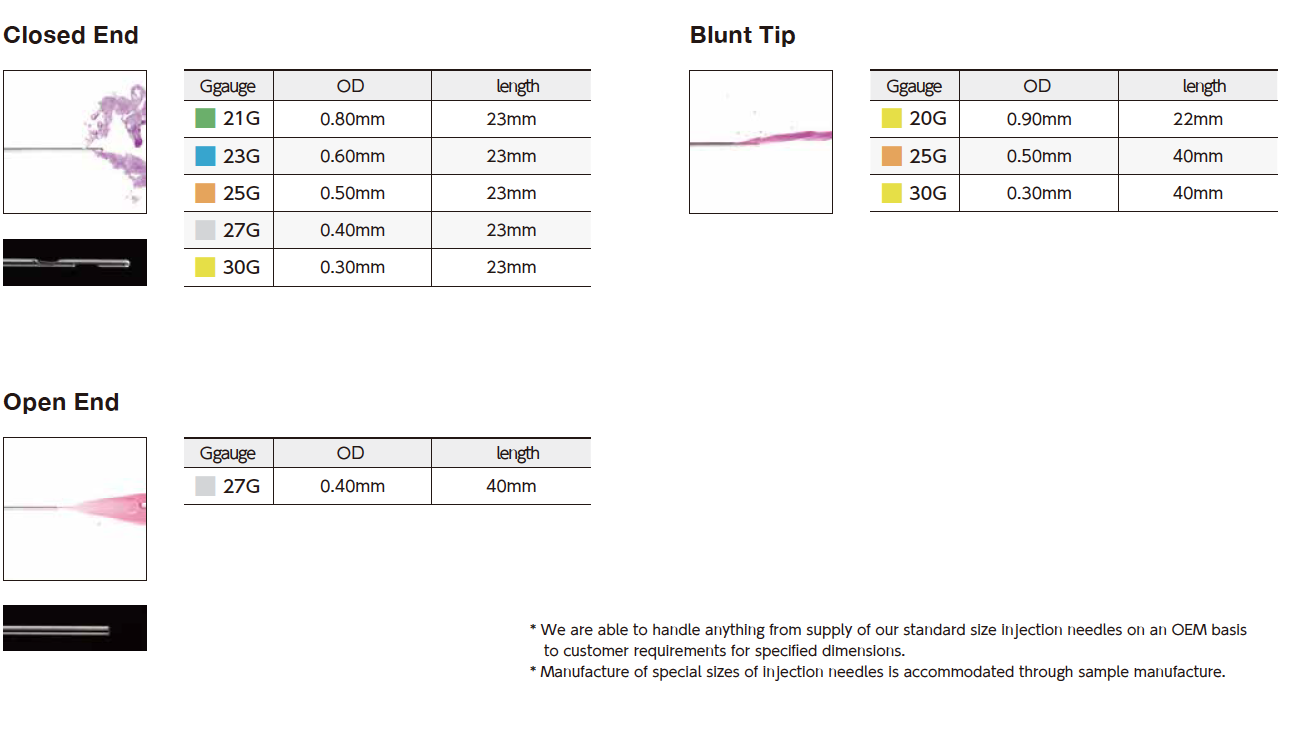

Washing Needles

Washing Needles


Injection needles designed with a smooth tip to facilitate introduction of washing solution. The position of the hole and needle length are improved to ensure the optimum size for dental treatment. The Open End, Closed End, and Blunt Tip types are available to suit requirements for hole position, and are used in accordance with the site to be washed and the method of treatment.
●Open End, Closed End, and Blunt Tip types available.
●A range of diameters, needle lengths, and hole positions are available to suit customer requirements.
●Washing needles can be developed and manufactured for a variety of applications, including industrial applications.



specification sheet PDF ►►

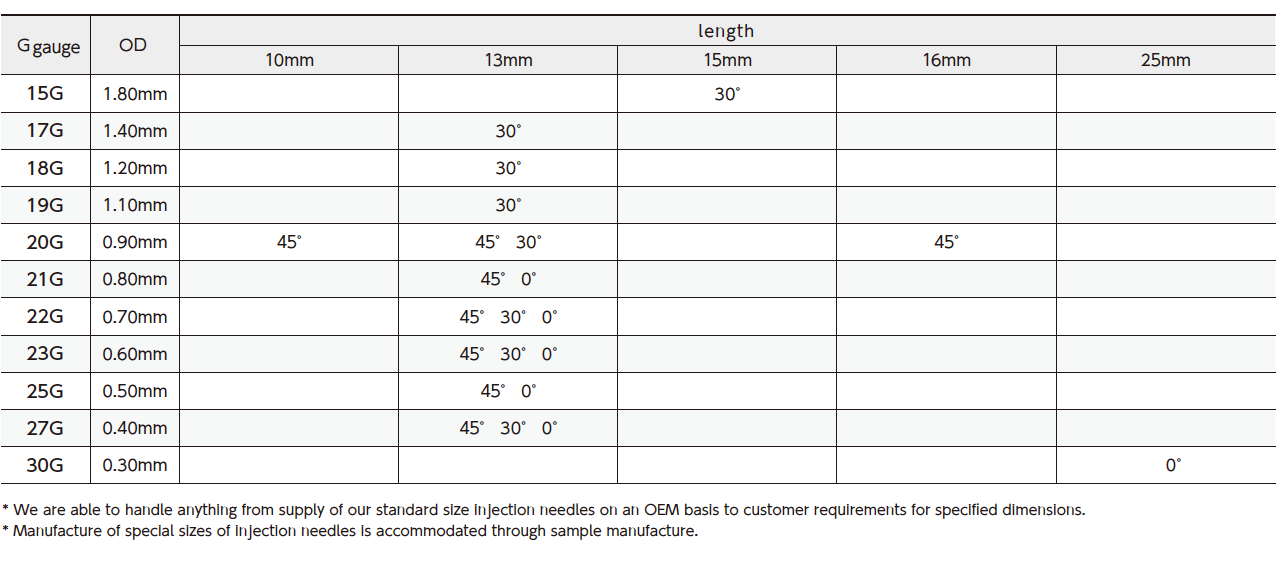

Resin Filling Needles

Resin Filling Needles


Needle used for resin filling. Tips are specially treated for safe use and good resin separation, and needle tubes are optimized for ease of use, and designed specifically for resin filling. Dental applications require three standard tip angles.
●0º, 30º, and 45º
●Black hubs (opaque to light) are supplied as standard.
●Diameter, needle length, and tip angle can be adapted to suit customer requirements.
●Washing needles can be developed and manufactured for a variety of applications, including industrial applications.



specification sheet PDF ►►

Aesthetic Field

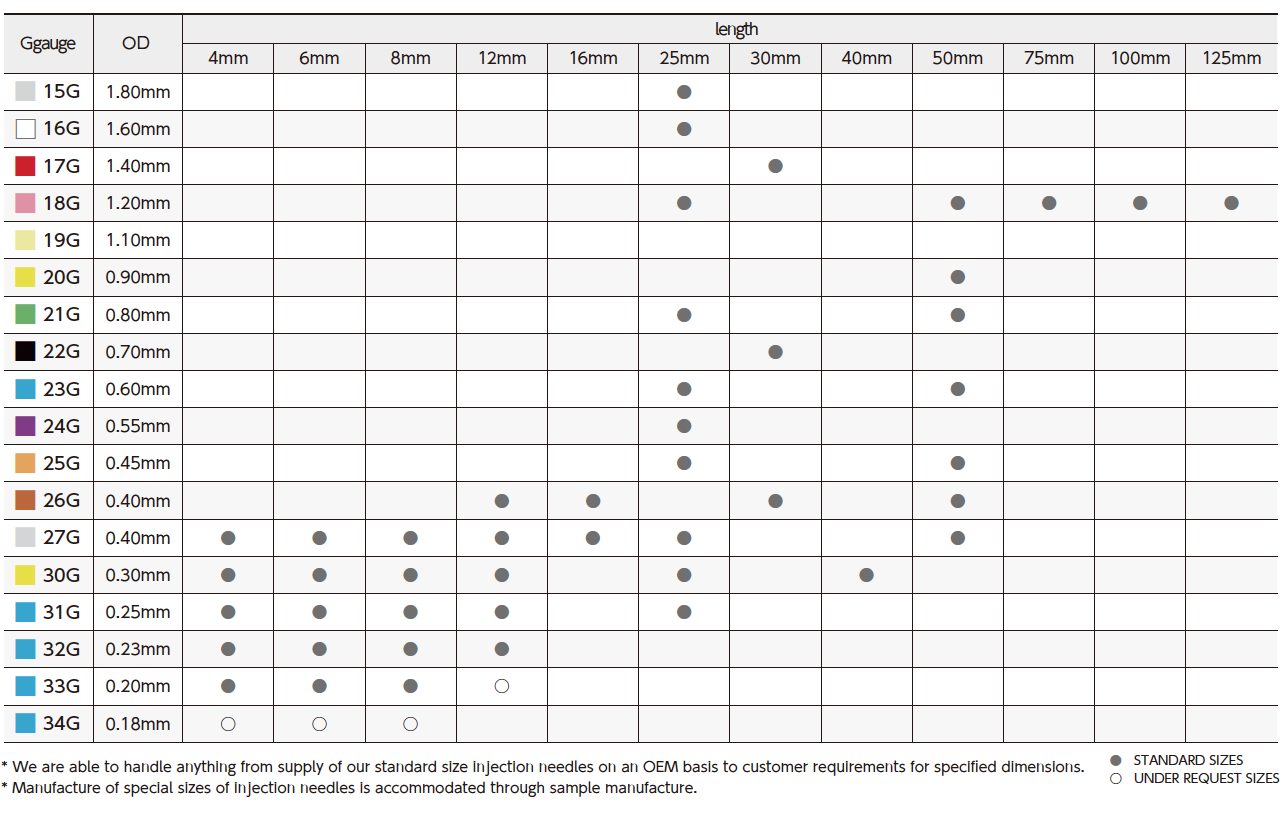

Aesthetic Needles

Aesthetic Needles


Used for injection of hyaluronic acid and botulinum toxin. Needles used for facial treatments must be short in length and ultra-fine, with sharp tips to minimize pain upon penetration and resultant wounds, and thus shorten the healing period. Tips of our company's aesthetic needles are sharp and finished with our unique coating, and as such have received high praise internationally.
●A range of ultra-fine needles from 4 mm in length and 34G (outside diameter 0.18 mm, wall thickness 0.05 mm) are available as standard.
●Ultra-fine needles 2.5 mm in length are also available.
●Manufacture of injection needles to customer-specified dimensions is accommodated through sample manufacture.
●Cannulas and bulk components can also be delivered in unpackaged format.



specification sheet PDF ►►

Ophthalmology Field

Washing Needles

Washing Needles


Injection needles designed with a smooth tip to facilitate introduction of washing solution. Processed in a shape suitable for ophthalmic washing. Tip angle varies according to the treatment application. In addition to the standard type, it is possible to ship samples of original needles of specified diameters, shapes, and lengths according to requirements.
●Tip angle varies according to the treatment application.
●Manufacture of injection needles to customer-specified dimensions is accommodated through sample manufacture.
●Cannulas and bulk components can also be delivered in unpackaged format.
